Robotic O-Ring Assembly Machine

Picture of Robotic O-Ring Assembly Machine
Picture of Robotic O-Ring Assembly Machine
Picture of Robotic O-Ring Assembly Machine
Picture of Robotic O-Ring Assembly Machine

Story

Customer needed an automated machine to insert multiple O-rings and locking clips into a coupler for irrigation equipment.

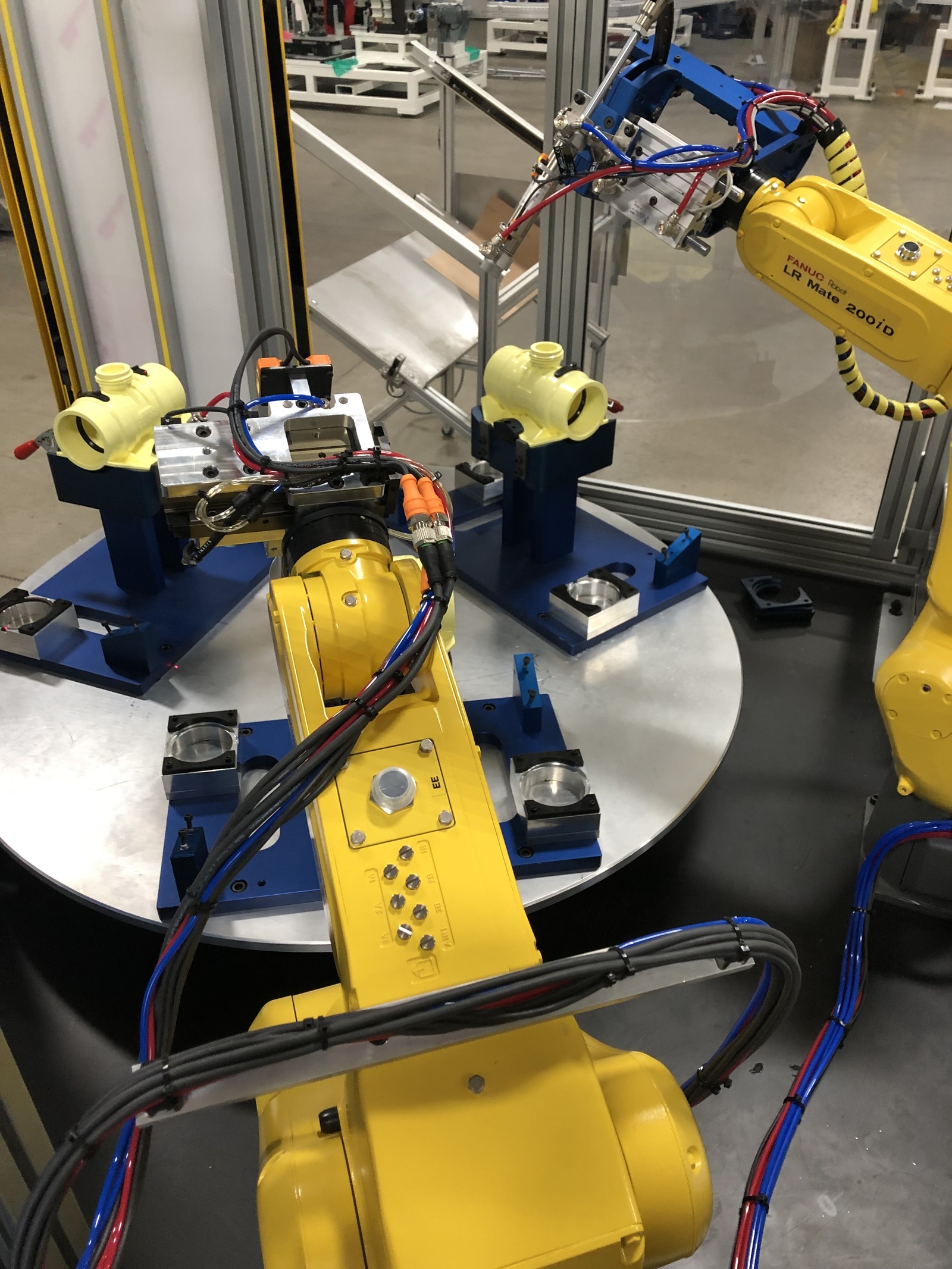

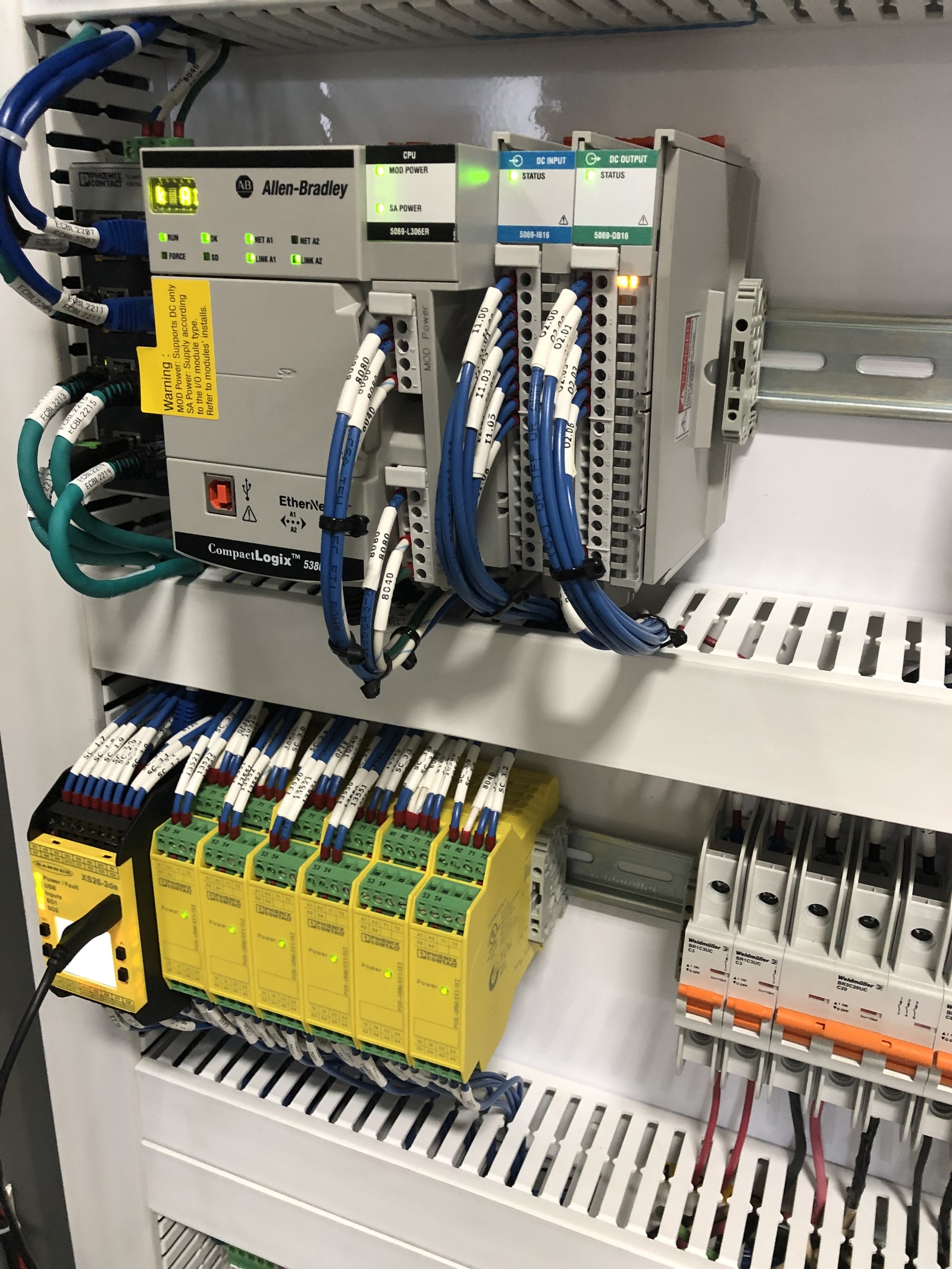

The machine consists of 2 Fanuc Robots with a 3-position indexing, turn table. The robots insert and check the position of each O-ring and locking ring. HighPoint provided the Electrical Engineering, panel build and programming of PLC, HMI and Fanuc Robots with custom End of Arm Tooling (EoAT) for the project.


A once very manual process has been automated, increasing quality and output for our customer.

Facts

  • Title: Robotic o-ring assembly machine
  • Postal code: 49423
Project Identification Number:

PP-OTR-AE5D-A0E6-4CF9-D61C-0

Status: Completed

Tags

  • Automation
  • robot
  • manufacturing
  • plc
  • hmi

@Mentions:

Project News Posts:

Automation adds quality and efficiency through robotic assembly cell.

Posted: Sep, 20th

Project: Robotic O-Ring Assembly Machine

Automated robotic assembly cell for O-Ring andd Gasket installation.

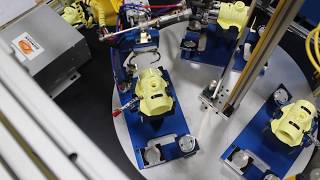

Video for project
